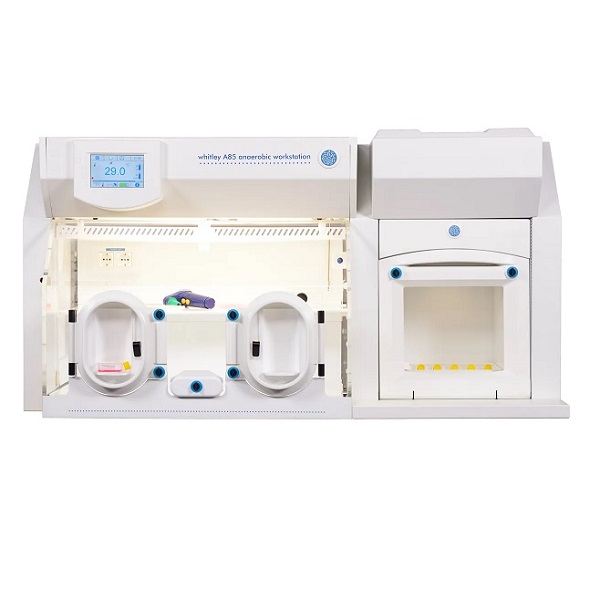

Whitley A85 Workstation
The Whitley A85 is used when there is a need to easily process, incubate and examine samples without exposure to atmospheric oxygen. This anaerobic workstation has a large, 36 litre airlock and accommodates up to 560 x 90mm plates. Oval glove ports enable you to work comfortably, gloved or bare handed. Each gloveport also acts as a mini-airlock so you can transfer up to 10 plates through each as you insert or withdraw your arms.
Overview
The colour, touch-screen control panel ensures ease of use and is perfect for visual display of parameters such as temperature, humidity, and airlock cycle status.
The A85 Workstation can be purchased with the Whitley Internal HEPA Filtration System or can include a refrigeration unit should you want to manipulate samples and incubate cultures at low temperatures. This workstation can also be purchased as a three gas (TG) version, which runs from separate cylinders of nitrogen, hydrogen and carbon dioxide. So if you need to reduce costs to a minimum ask about the A85TG.
- The airlock, with powered internal door, provides effective sample and equipment transfer in the fastest possible time whilst ensuring the minimum amount of oxygen is introduced into the chamber.
- Dual gas operation to minimise running costs or order the TG version to further reduce costs.
- Includes automatic commissioning cycle to save you time and resources.
- Options include HEPA filtration, a refrigeration unit, and an integrated Anaerobic Conditions Monitor with data download facility.
Specifications
| Capacity Litres | 300 | ||
| Capacity Petri Dishes | 480 / 560 | ||
| Port Airlock Capacity | 10 plates per port + 90 plates via airlock (110) | ||
| Airlock Size (litres) | 36 | ||
| Porthole System | Manual | ||
| Gas Supplies | ANO2/N2 or H2/CO2/N2 | ||
|
|
||
| Auto Sleeve Gassing | Available | ||
| Internal Mains Sockets | Available | ||
| Inspection Lamp | Available | ||
| Single Sample Entry | Available | ||
| AN02 Conditions Monitor | Available |
| Airlock Cycle Time (seconds) | 60 |
| Extra Cable Glands | Available |
| Automatic Dehumidifier | Included |
| Removable Front | Available |
| Trolley Available | Included |
| Vacuum Take Off | Available |
| Touchscreen Control | Yes |
| Remote Access | Included |
| HEPA | Available |
| Dimensions (W/D/H mm) | 2510 / 720 / 710 |
| Weight (lbs/kgs) | 440 / 200 |
