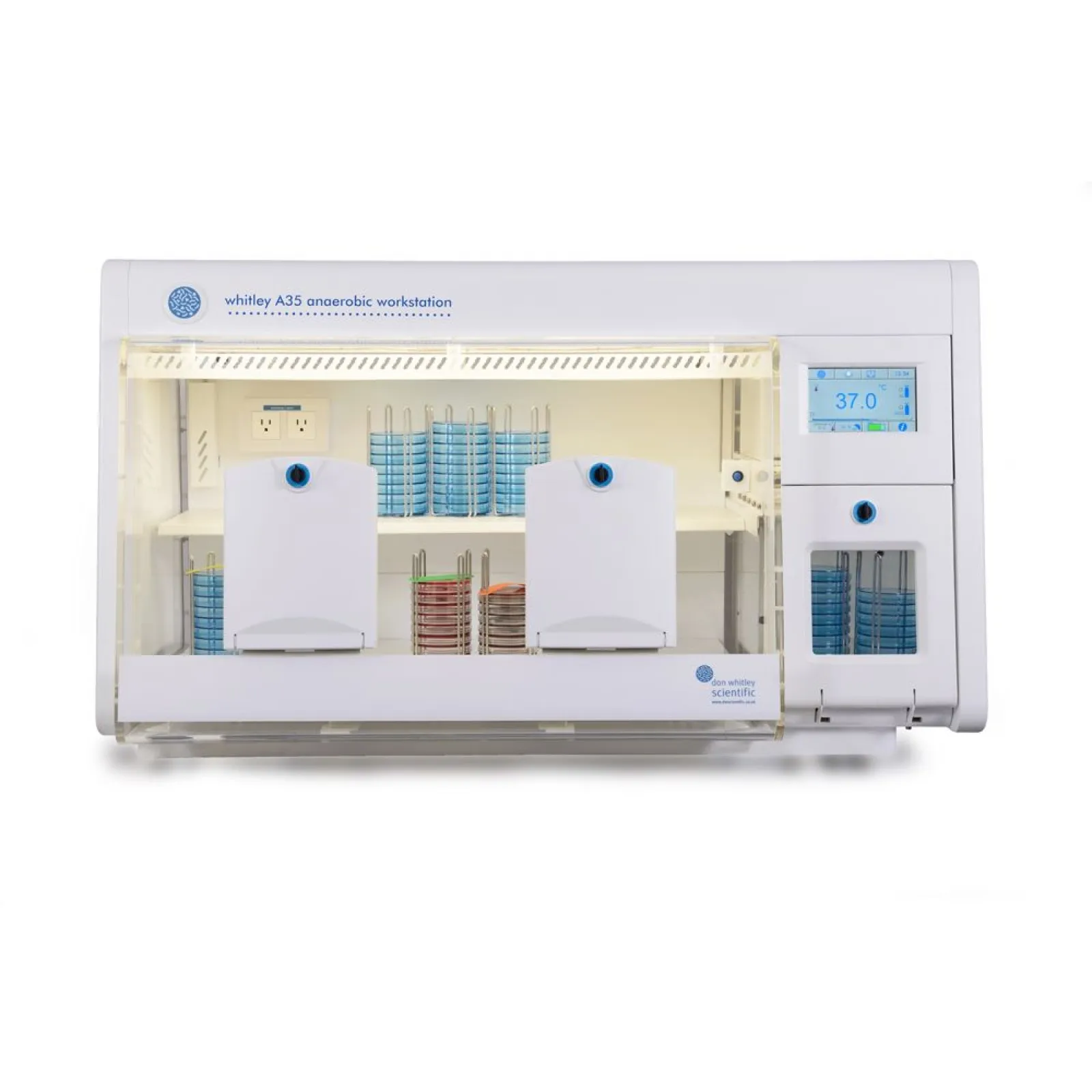

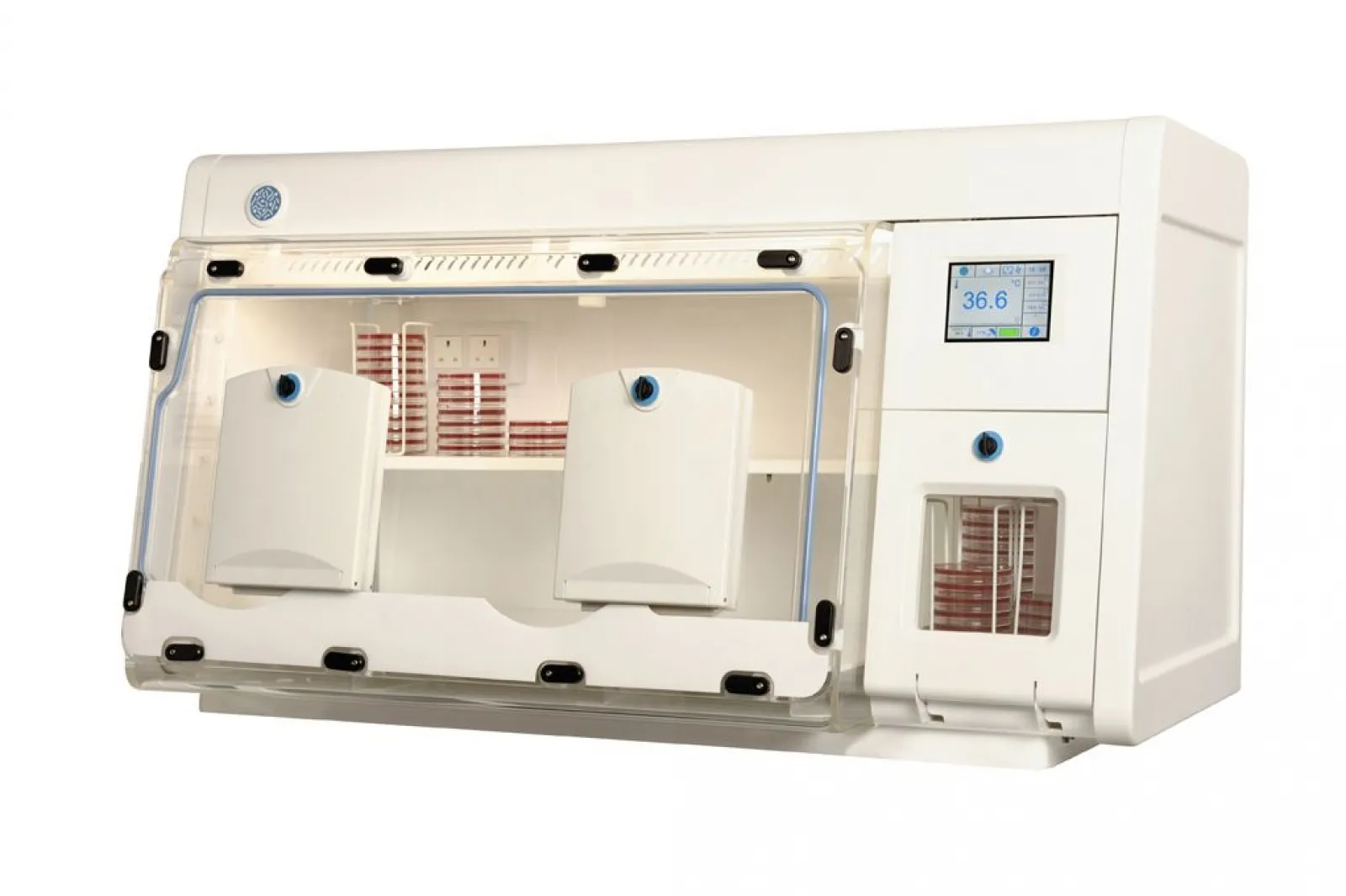

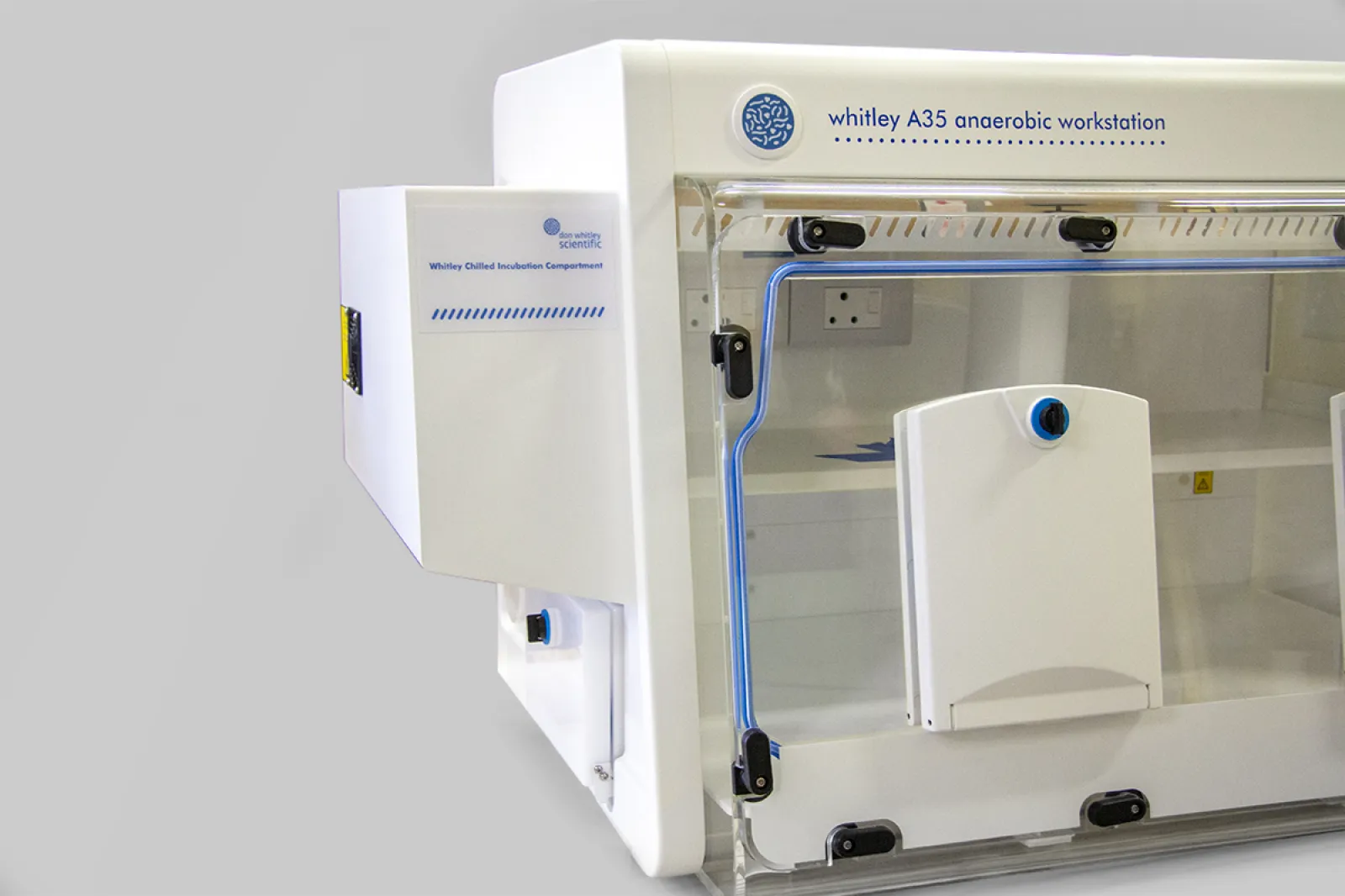

Whitley A35 Workstation
The Whitley A35 Workstation provides excellent conditions for the processing, incubation and examination of samples without exposure to atmospheric oxygen. This anaerobic chamber provides the ability to manipulate samples in a sustainable environment where parameters can be altered to create the required conditions. Applications for this workstation include clinical microbiology, dental and research into the human gut microbiome.
Overview

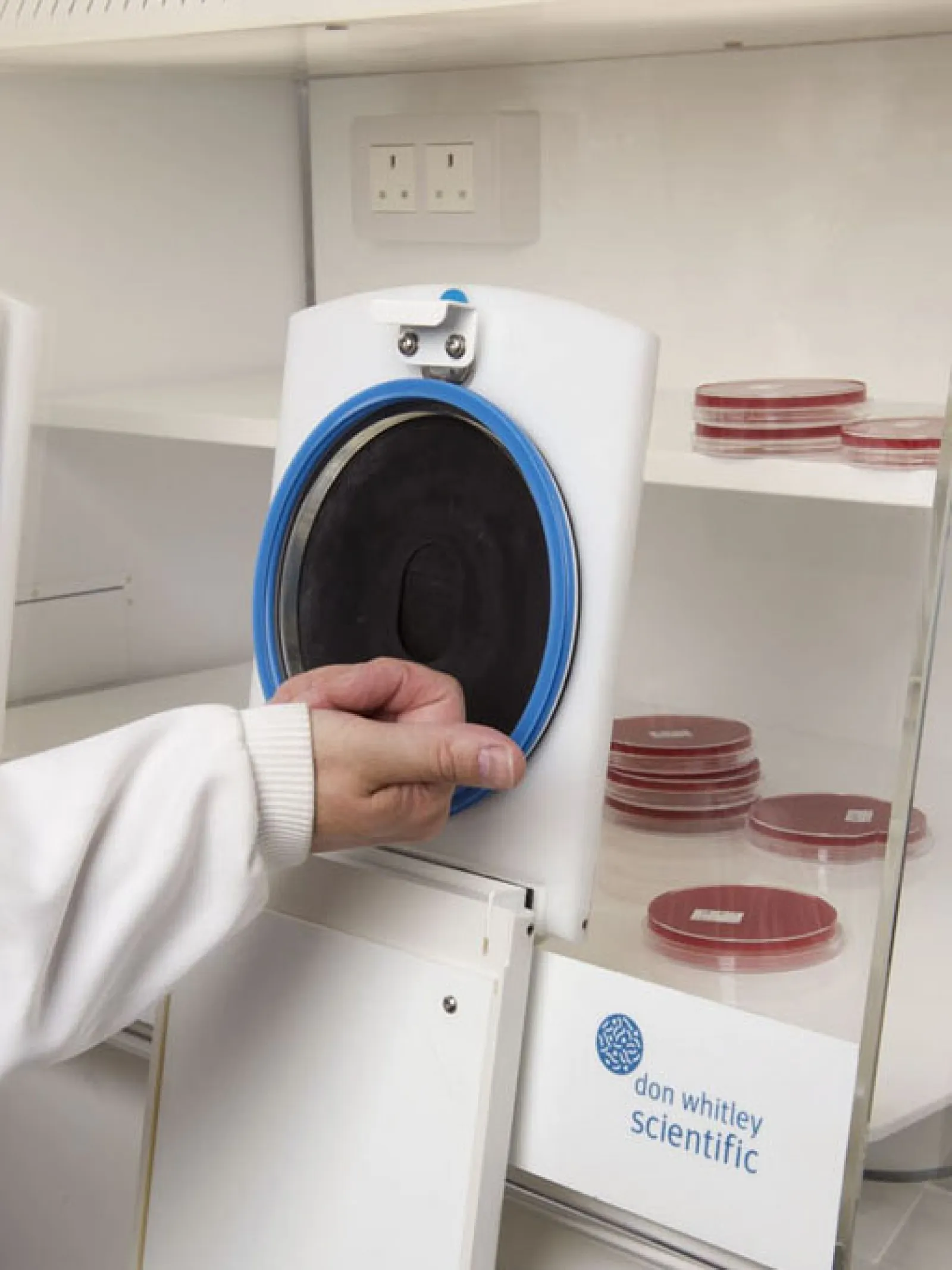

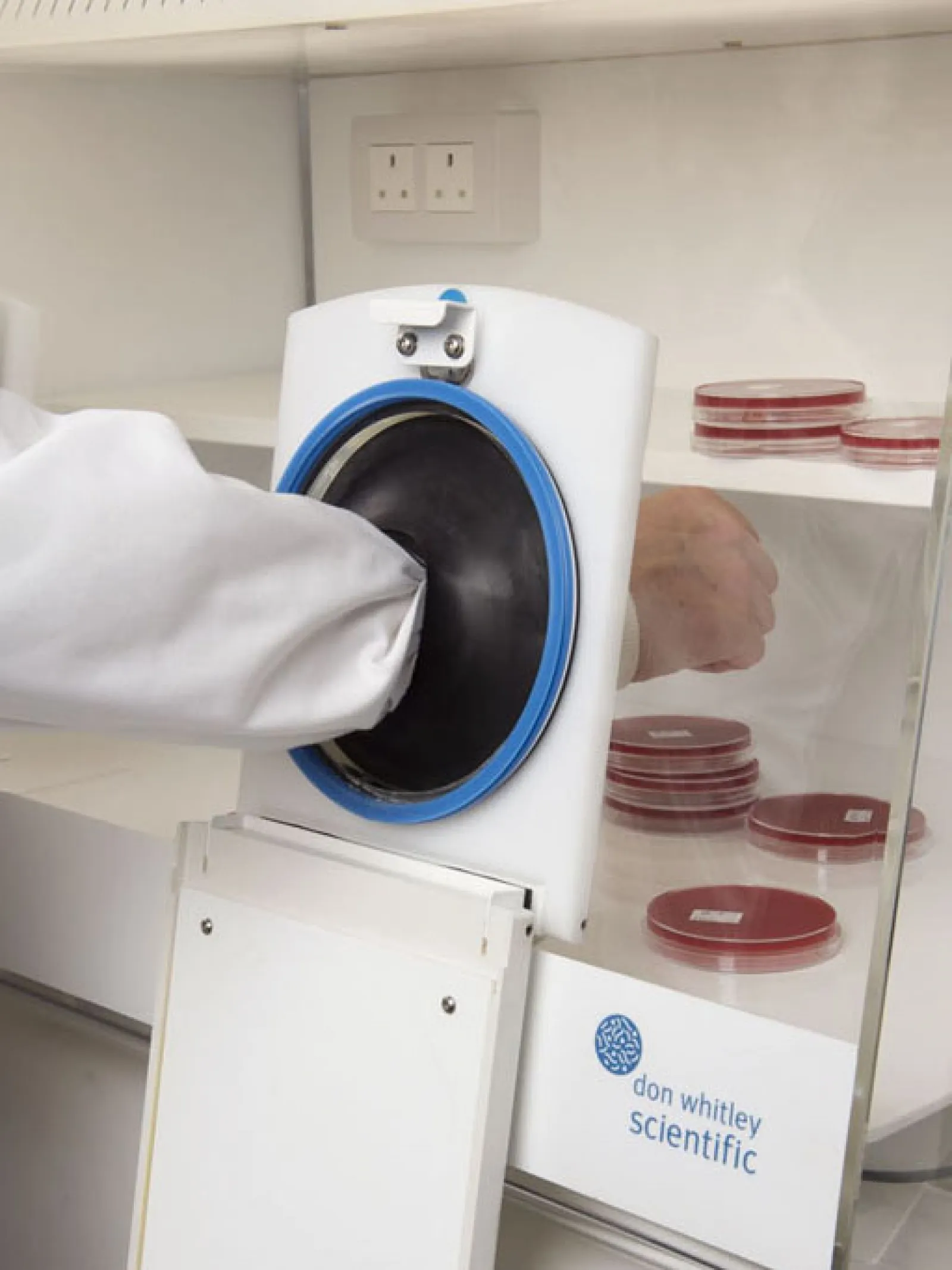

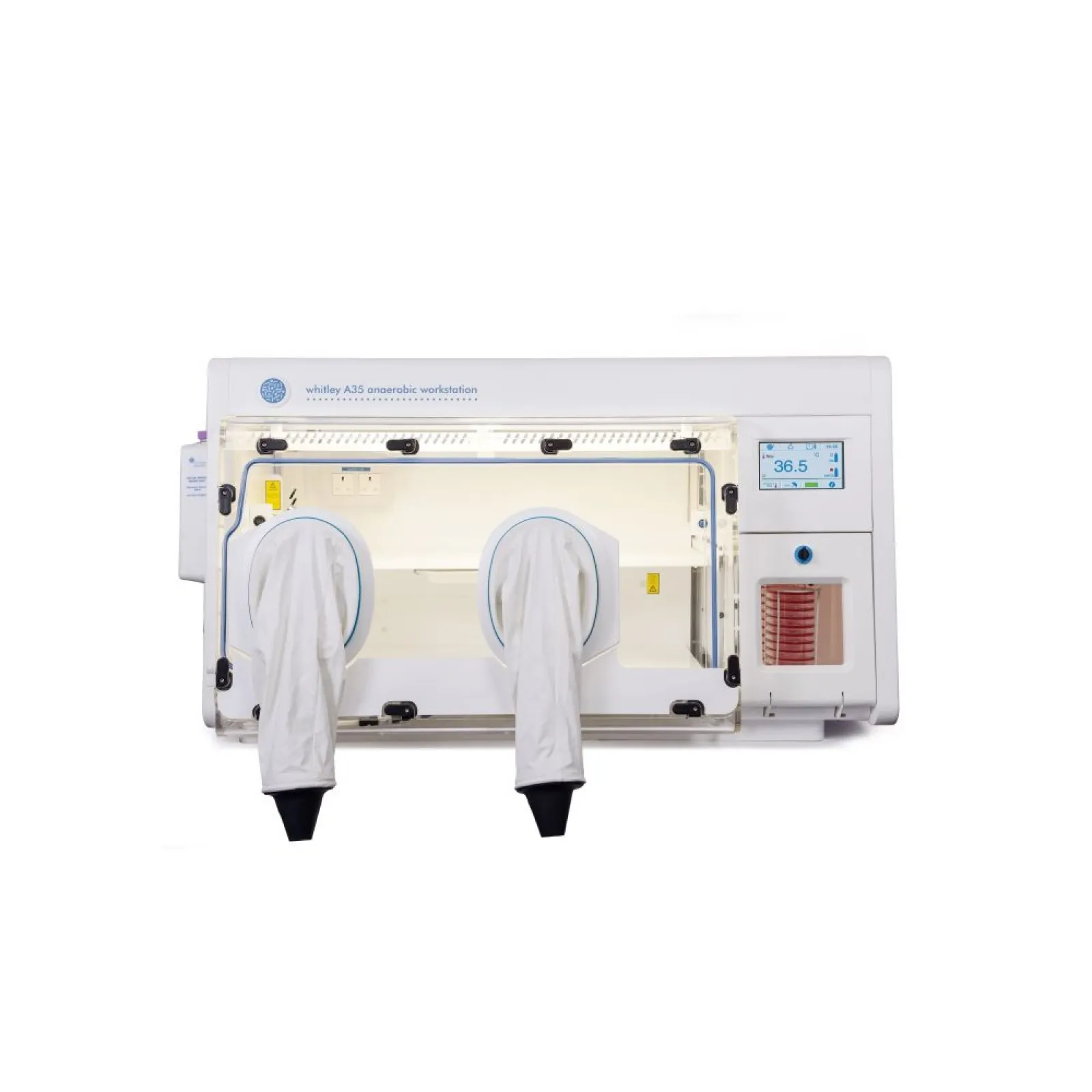

The standard A35 features two oval, sleeved ports on a fixed front. This workstation can also be specified with our unique instant access porthole system that allows entry to the chamber in seconds and needs neither gloves nor sleeves. Additional options include HEPA filtration, an integrated anaerobic conditions and catalyst monitoring system with data download facility.
Sample manipulation within a secure anaerobic environment is now as easy as working aerobically at the laboratory bench.
- Accommodates up to 600 x 90mm Petri dishes.

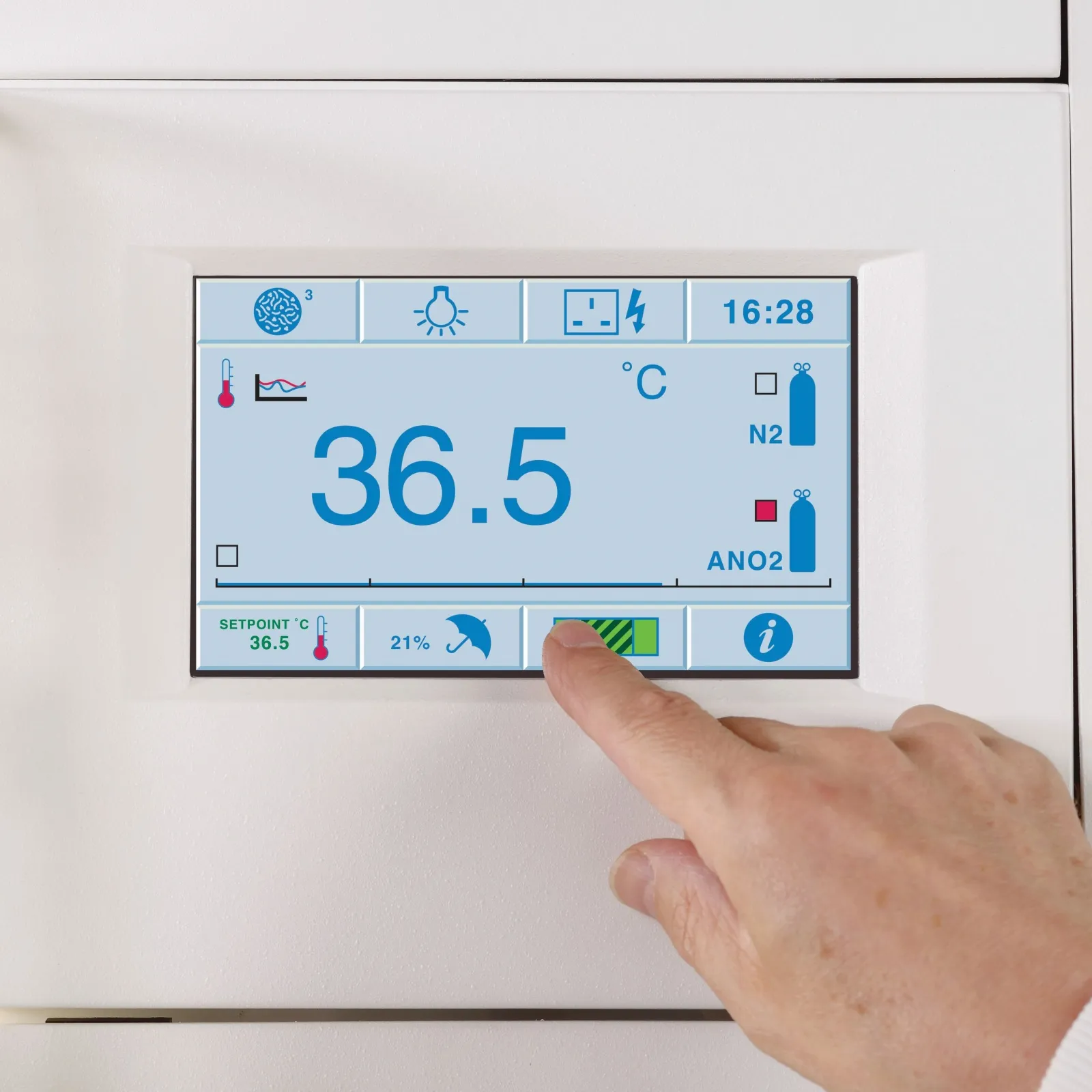

- A colour, touch-screen control panel for ease of use and for visual display of parameters such as temperature, humidity, and airlock cycle status.
- With the HEPA model, levels of atmospheric cleanliness inside the workstation exceed the requirements of ISO 14644 Class 3. Proof of atmospheric cleanliness can be provided on request.

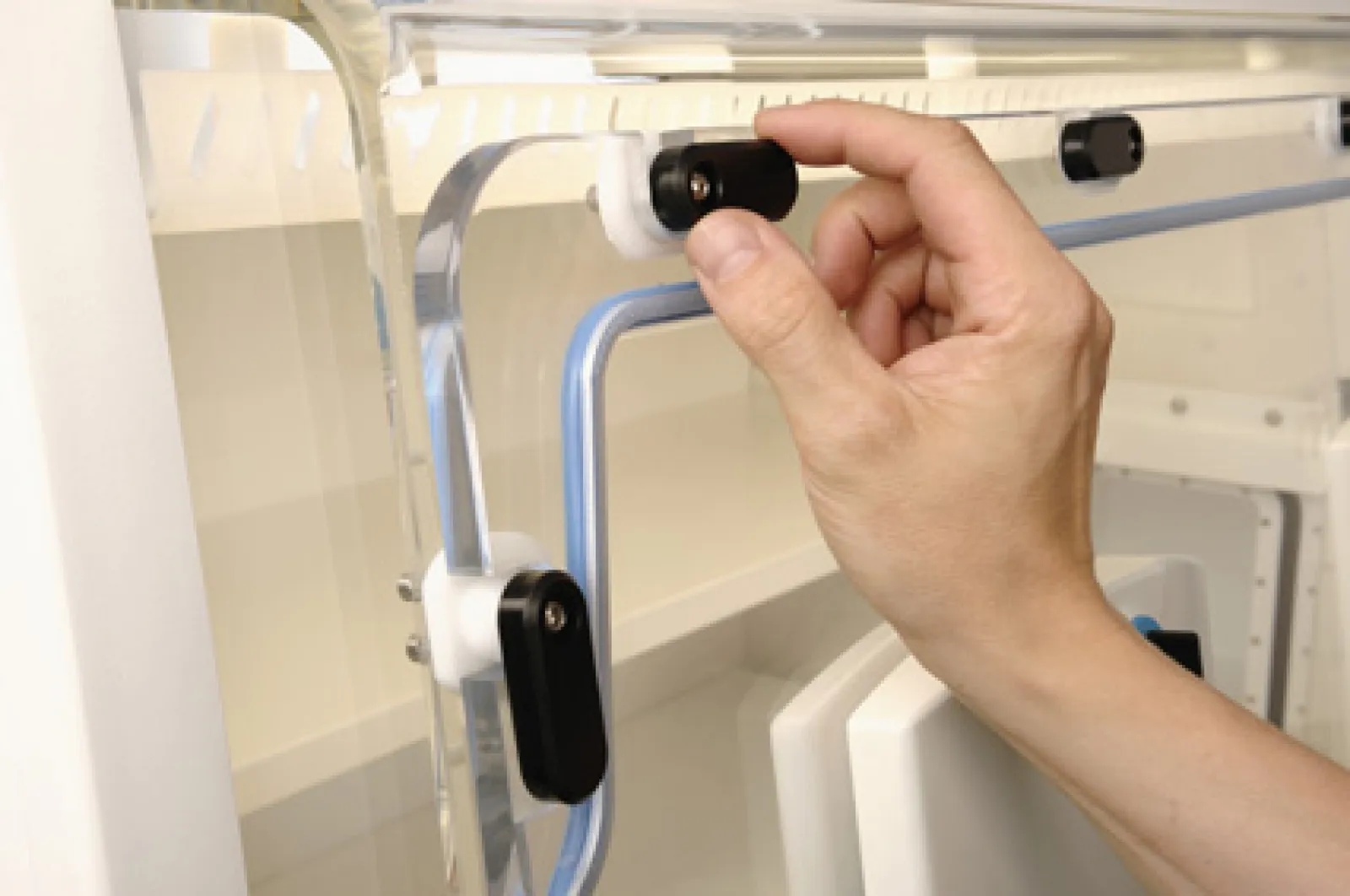

- Available with a removable front to facilitate thorough cleaning and the transfer of bulk samples and larger pieces of equipment for use in the workstation.
- The built-in rapid airlock ensures samples can be transferred into the workstation atmosphere as soon as possible.
- Ethernet-enabled for remote access to touchscreen.
- Includes an automatic commissioning cycle to save you time and resources.
- Optional accessories include the Automatic Gas Changeover Unit – never run out of gas again!
Specifications
| Capacity Litres | 300 | |
| Capacity Petri Dishes | 540 / 600 | |
| Port Airlock Capacity | 40 plates via airlock | |
| Porthole System | Manual or Instant Access Ports | |
| Gas Supplies | ANO2/N2 | |
| Footswitch | Wireless | |
| Auto Sleeve Gassing | Available | |
| Internal Mains Sockets | Available | |
| Storage Tray | Available | |
|
Available | |

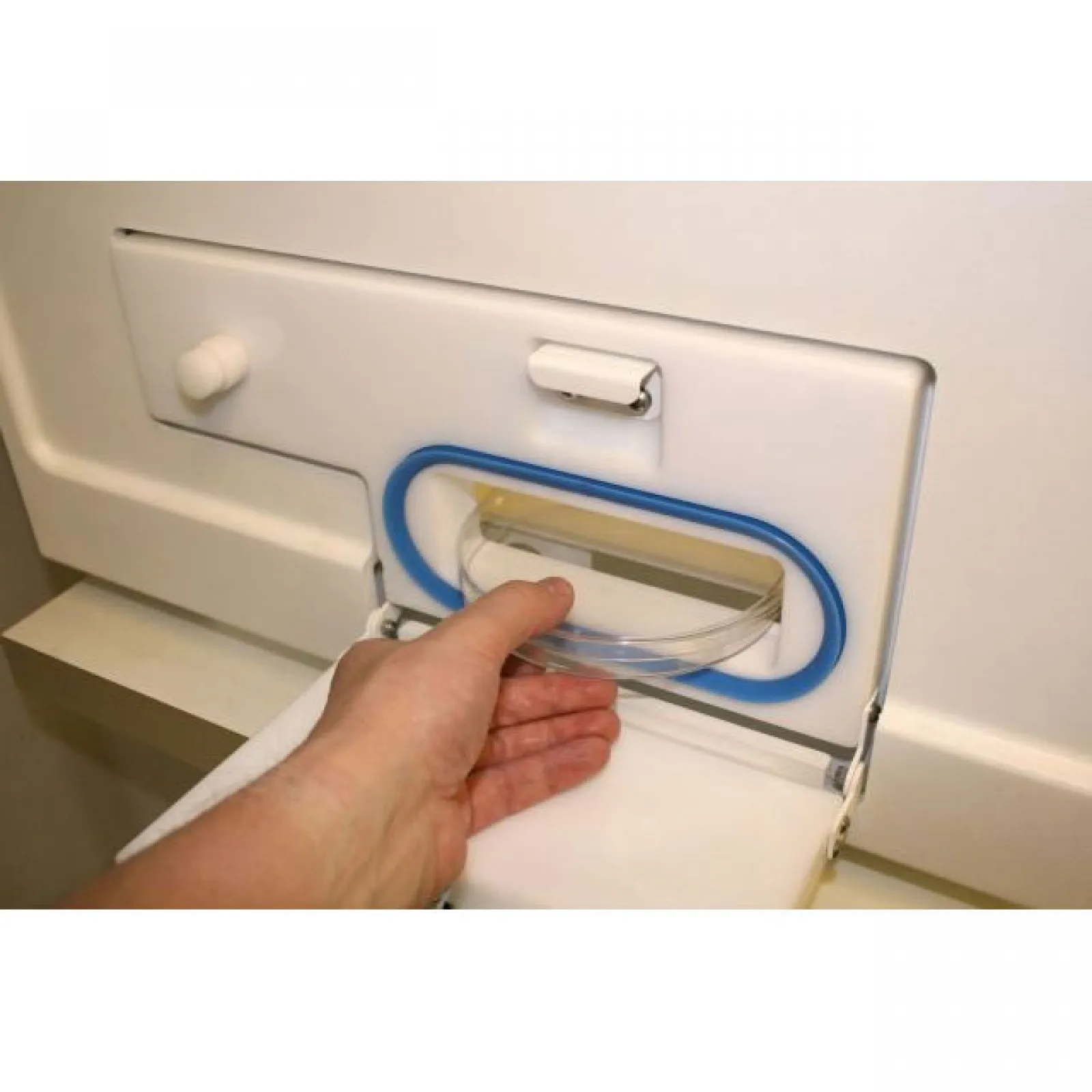

| Available | Single Sample Entry | |
| Single Sample Entry | Available | |
| AN02 Conditions Monitor | Available | |

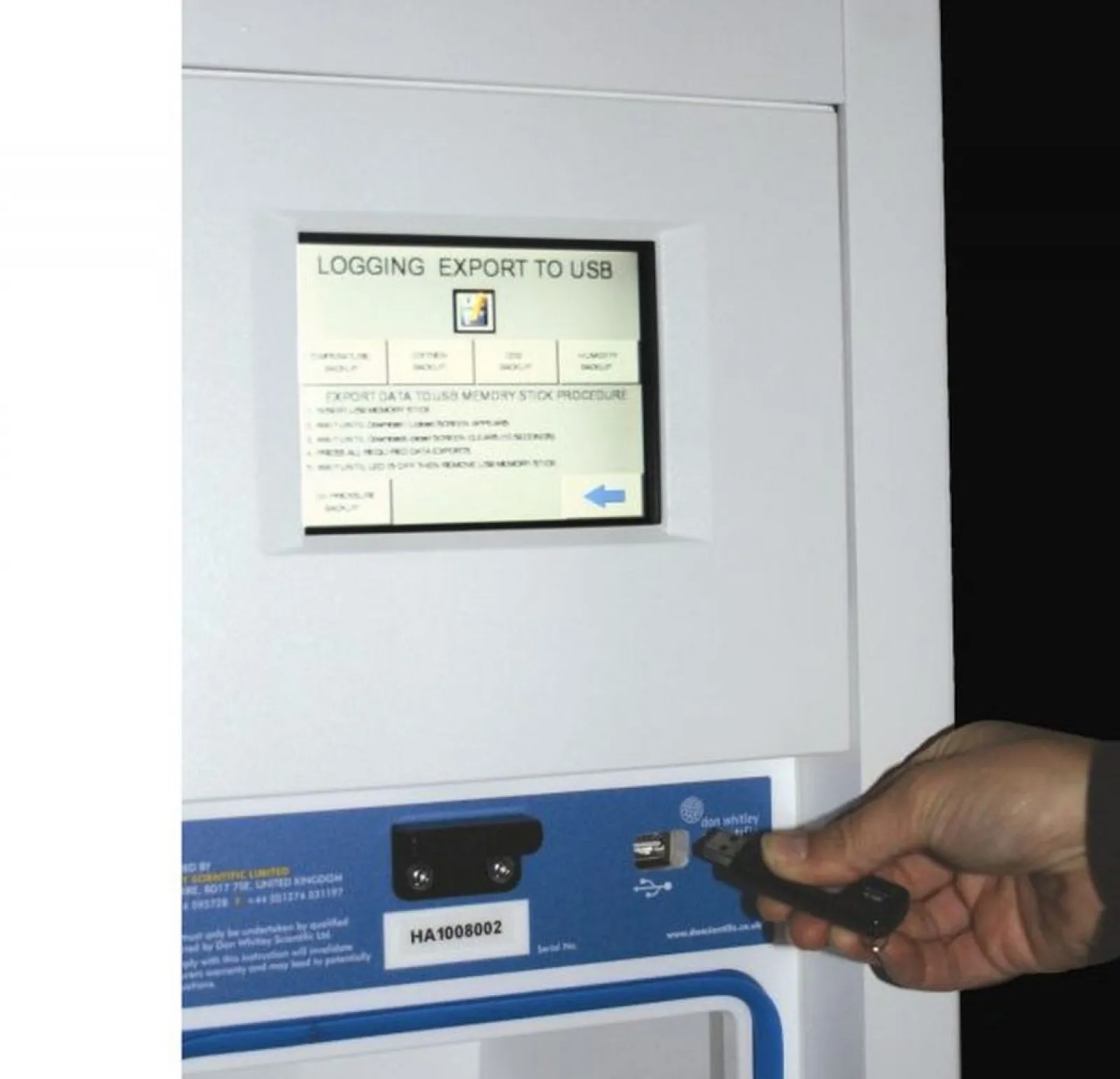

| Data Logging | Available |
| Airlock Cycle Time (seconds) | Standard 60 (Option to increase in 1min increments to 5mins) |
| Extra Cable Glands | Available |
| Automatic Dehumidifier | Included |
| Automatic Humidifier | Available |
| Removable Front | Available |
| Trolley Available | Available |
| Vacuum Take Off | Available |
| Temperature Range | 5°C above ambient up to 45°C |
| Touchscreen Control | Yes |
| Remote Access | Included |
| HEPA | Available |
| Dimensions (W/D/H mm) | 1255 / 720 / 710 |
| Weight (lbs/kgs) | 220 / 100 |
