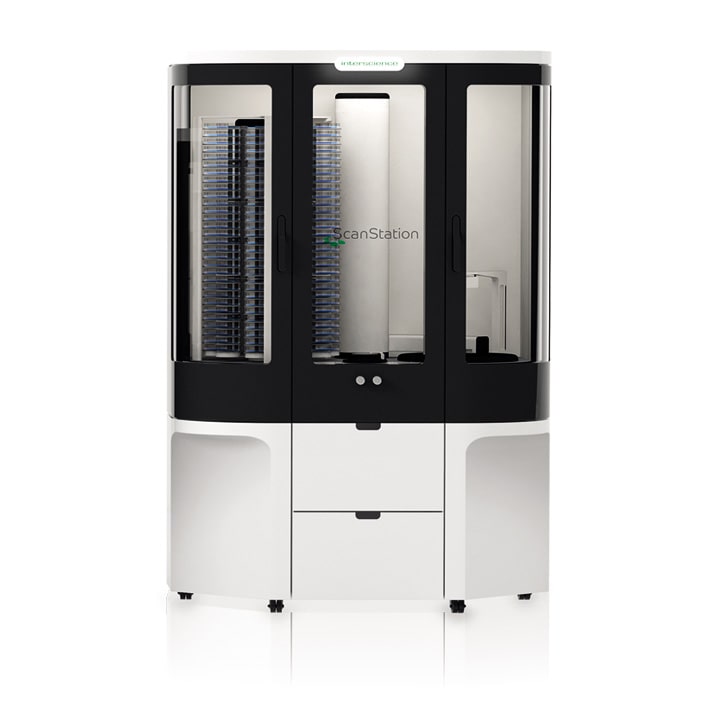

ScanStation 300
Real-time incubator and colony counter
300 Petri dishes
Ref. 439 300
ScanStation 300 is a device centralizing incubation, detection and counting of Petri dishes. Colonies are detected & counted as soon as they appear. Follow the growth curve of the colonies. ScanStation 300 can accommodate up to 300 Petri dishes.
- Capacity: up to 300 Petri dishes
- Counting on pour plate, surface, Spiral, filtration membranes
- Petri dish sizes: Ø 55 to 65 mm, Ø 90 mm
- Telecentric lens
- Reading time in between each dish: 1 hour
Specifications
Specifications
| ScanStation 300 | |
| Reference | 439 300 |
| Capacity | 300 Petri dishes |
| Reading time in between each dish | 1 hour |
| Petri dish size | Ø 90 mm right-side or upside down and Ø 55-65 mm (with adaptor) |
| Type of plating accepted | Pour plate, surface, Spiral, filtration membrane |
| Loading | Single or multi-batch |
| Camera resolution | 5 megapixels |
| Telecentric lens | N |
| Interface | 23 inches touch screen |
| Data export | Excel™ |
| Video player | Play, zoom, pause, replay, during and after incubation |
| Included computer system | PC Windows 10 LTSC desktop with Intel i7 processor |
| Software | ScanStation software |
| Incubation temperature | From 20°C to 45°C |
| Accuracy of incubation temperature | ± 1°C (checked by a 9-point mapping system) |
| Recording of the temperature | Every minute |
| Heating and cooling technology | Peltier modules, compressor free |
| External temperature | From 18°C to 25°C |
| Max external humidity temperature | 70% |
| Max incubation time | 10 days |
| LED internal light | N |
| Electronic locking door | N |
| Pressure sensitive gripper to adapt itself to any kind of dish | N |
| Robotic architecture with incubator, gripper and colony counter | N |
| Extra rigid mass aluminum platform | N |
| Dimensions (w x d x h) | 135.3 x 82.3 x 149.4 cm |
| Net weight of the ScanStation (without option) | 350 kg |
| Dimensions with handles dismantled (w x d x h) | 135.3 x 78.6 x 149.4 cm |
| Furniture dimensions (height) | 59.6 cm |
| Net weight of the storage furniture | 70 kg |
| Total height with storage furniture | 201 cm |
| Box (w x d x h) | 168.6 x 96 x 226 cm |
| Gross weight (without option) | 520 kg |
| In compliance with | 21 CFR Part 11 |
| Voltage and frequency | 100-240V~ 50-60 Hz |
| International protection marking | 20 |
| Max power | 2000 W |
| Warranty | 1 year |
 |
Delivered with: 1 computer and its power cable OR 1 server with its power cable, 1 Wifi antenna connected to the computer or server, 1 monitor with its power cable, 1 Display Port cable, 1 USB 3 cable, 1 wireless keyboard, 1 wireless mouse, 1 dongle for keyboard and wireless mouse, 1 general unit power cable, 1 temperature map, 1 user’s manual, 1 maintenance kit including 1 optical cleaner bottle and 1 grease pump, 1 test pattern |
