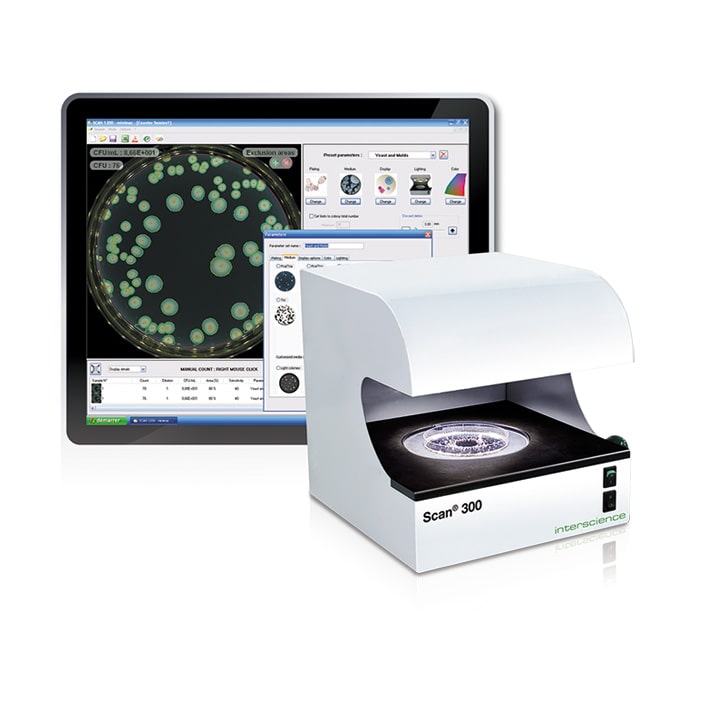

Scan 300
Automatic colony counter
Essential features
Ref. 436 300
Scan 300 is an automatic colony counter that includes the essential features for Petri dish counting. It is specifically adapted to the usual media in food microbiology: PCA, MRS…
- Minimum size of detected colony: 0.1 mm
- Camera: 1 megapixel – zoom x 28
- Couting on round Petri dishes of Ø 55 – 90 mm
- Counting on pour, surface, Spiral, circle mode plated dishes
- Language: English, French, Japanese, Chinese, Russian, Spanish, German
Specifications
Specifications
| Scan 300 | |
| Reference | 436 300 |
| Type of colony counter | Automatic |
| Camera | CMOS color camera |
| Lens | M12 Lens |
| Zoom | x 28 |
| Resolution | 1 megapixel |
| Counting time | Up to 1000 colonies per second |
| Minimal size of colony | 0.1 mm |
| Lighting technology | Long life white LEDs / Dark Field |
| Lighting system | Automatic with 6 combinations, top and/or bottom light, white or black background |
| Counting | Automatic with manual control |
| Counting on Petri dishes | Ø 55 mm – Ø 90 mm |
| Colony counter | N |
| Counting on pour, surface, Spiral and circle plated Petri dishes | N |
| Automatic separation of clustered colonies | N |
| Creation of polygonal exclusion zones | N |
| Manual control to add or substract colonies | N |
| LIMS/SIL connection | N |
| USB connection | N |
| Available with dataLink traceability system | N |
| Stainless steel | N |
| Data export | PDF, jpg, png, bmp, ExcelTM recountable session |
| Data security | Modified data traceability in conformity with 21 CFR part 11 / Connexion with LIMS/SIL systems |
| Results/traceability | Image / sample number / comments / date / time |
| Languages | French, English, Japanese, Chinese, Russian, Spanish, German |
| Dimensions (w x d x h) | 28.5 x 26.5 x 29 cm |
| Net weight | 8.4 kg |
| Box (w x d x h) | 50 x 40 x 40 cm |
| Gross weight | 11 kg |
| Voltage – Frequencies | 100-240 V~ 50-60 Hz |
| Power | 20 W |
| International protection marking | 00 |
| Operating sytem | WindowsTM : 10 or 11 |
| Processor | Intel i3 or better, 2.8 GHz, quad core recommended |
| RAM | 4 GB (2 GB of RAM must be reserved for the exclusif use of the Scan) |
| Equipments | USB 2.0 port free |
| Screen | 1280 X 1024 pixels or superior |
| Software updates after recording the warranty card | 3 years |
| Warranty after recording the warranty card | 3 years |
| In compliance with | 21 CFR Part 11, ISO 7218 and AOAC 977.27 |
 |
Delivered with: 1 Scan software, 1 15V power supply, 1 connexion cable, 2 validation plates, 1 user’s manual |
